Sea Commander Ocean yacht

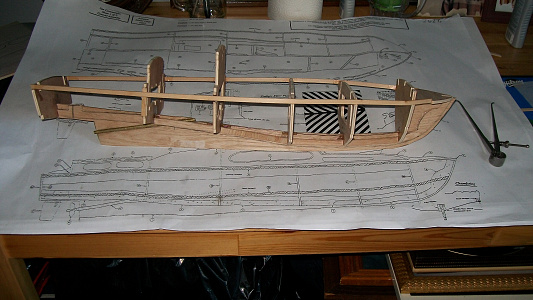

Thanks to a fellow in Tasmania I got plans for sea commander no names please took a week for my print shop to make plans size 24''in length I wanted to build the model in a scale that is manageable & easy to transport to the pond . Used 1/4 inch ply for ribs & cut them on my Drumel saw that's about 30 years old , so old I can't find blades any more in Canada
Aimé par BOATSHED and Skydive130 and

Motor installation

I had some 12 volt motor out of Black & Decker drills so I will use one I find that if motor isn't installed early it becomes very difficult to mount motors in a completed hull .Line up to shaft & couplings . the other thing is I us a Graupner flex coupling . They work great only problem they are no long available any where .
Aimé par BOATSHED and Skydive130 and

Hull prep completed

Had a little time & the weather was great so worked outside putting the hull skins on I used Door skin mahogany .A sheet was about $ 9.00 Canadian Next time I use Oak Door skin That's about $23.00 a sheet . Have to now take my time & smooth all the parts .I also sealed the inside of hull with a 2 part finishing epoxy.
Aimé par BOATSHED and Skydive130 and

lots of sanding

Continued with my project Sea commander hull sheets on deck on & lots of sanding for a smooth finish . Used a clear finishing epoxy it had a lot of bubbles after it dried so more sanding needed .Also made the rudder & shaft from brass rod & tube .
Aimé par jacko and Brightwork and

Need to slow down on my build log

I've seem to be obsessed with this build so I need to slow down a little .
Aimé par BOATSHED and Skydive130 and

Paint

Put a little paint on my Sea Commander model to see any problems .The I realized front windows would be hard to install so filled them in . The rear cabin & front cabin tops where very difficult to make them sealed & removable but with a little effort got them on .
Aimé par BOATSHED and Skydive130 and

Tools

I know it's a little late but here's my Drumall saw with a rib for the Sea Commander #22 . its so old I can't find saw blades any more .Got 3 blades left
Aimé par BOATSHED and Skydive130 and

Dremel saw blades

Thanks for all the replies on saw blades I broke down and use the E-Bay site . I wasn't looking that hard for these until today the cost was $31.52 most was shipping from the U.S. Got two packs I guess I'll have enough for 20 years
Aimé par Skydive130 and vosper and
GARTH #10 of 11 2

Paint Continued

Added the windscreen & railings on back deck . I want to have tinted windows & a U-Tube video was looked at. So I have to get some Smoke paint from the hobby store tomorrow .
Aimé par jacko and BOATSHED and
GARTH #11 of 11 2

Pool try outs

Nov.13 2017 Spencers pool is being drained for winter skate rink so rushed Sea Commander for a pool try out & shake down . still needs windows & some deck accessories . One of the members suggested to get some tint from a shop that tints car windows & got some tint film for free thanks for that idea . Hope the winter flies by so summer sailing can start again .
